coax

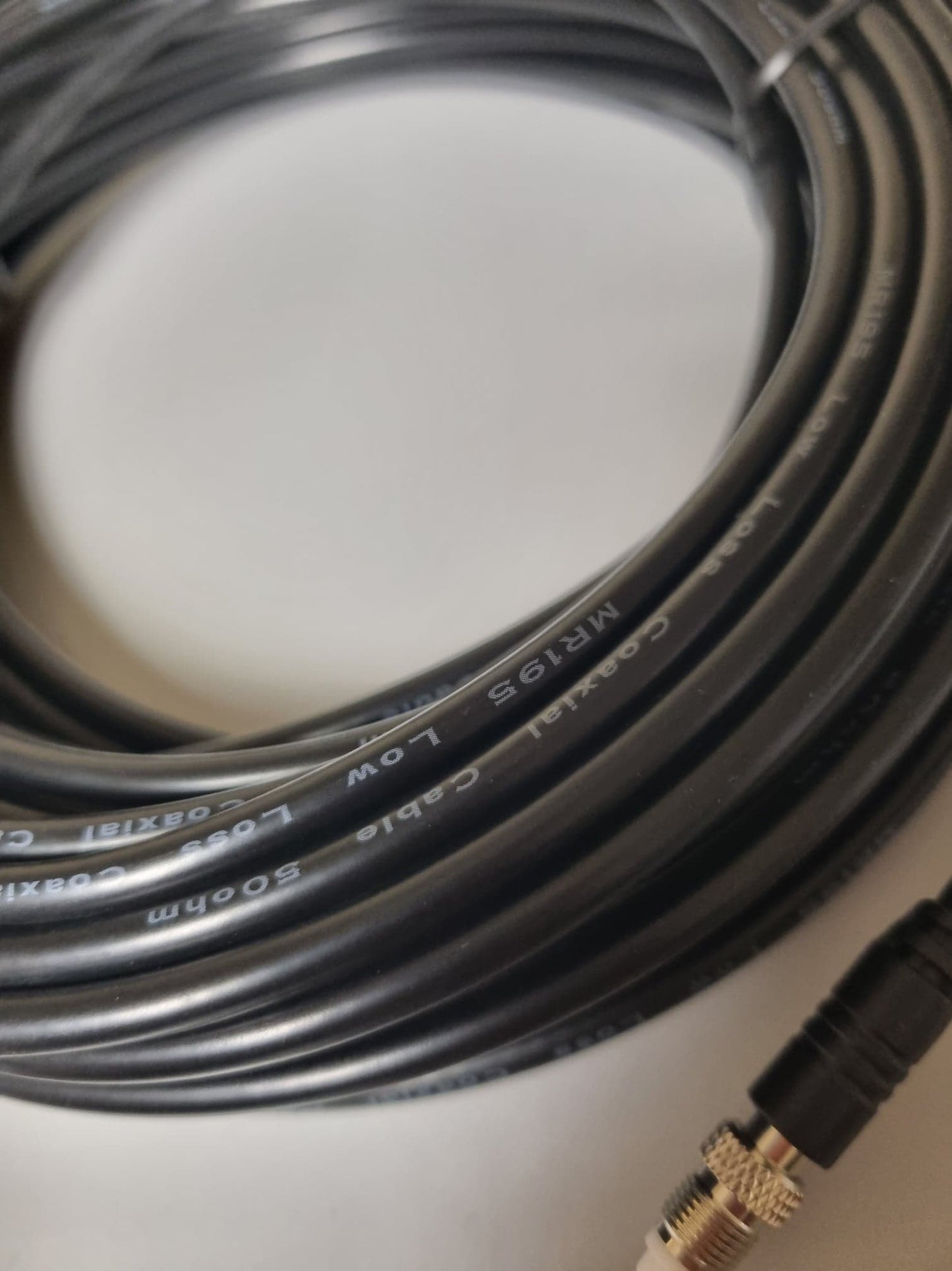

Coax Kabel med ferdig FME/FME plugger 20 meter
Vanlig pris
600,00 NOK
Vanlig pris
Salgspris
600,00 NOK
Enhetspris
per
Avgift inkludert.
Kunne ikke laste inn hentetilgjengelighet
Super Low Loss MR195
Antennekabel/Overgangskabel/Adapterkabel/Skjøtekabel
| Hardware spec. | |
| Centre conductor | Plain Copper |
| Centre conductor Ø | 0,95 mm |
| Dielectric | Foamed PE |
| Dielectric Ø | 2,8 mm |
| Shield | Aluminium/ polyester/ tapeshield |
| Shielding factor | 100 % |
| Outer conductor | Tinned copper braid |
| Shielding factor | 85 % |
| Sheat | Black PVC |
| Outer diameter Ø | 5 mm |
| Weight | 3,66 Kg/100 mm |
| Temperature range | -30º~70º C |
| Electric spec. | |
| Impedance | 50 Ohm |
| Capacitance | 84 pF/m |
| Velocity factor | 0,80 |
| DC-resistance centre conductor |
25,2 Ohm/Km |
| DC-resistance Outer conductor |
18,5 Ohm/Km |
| Typ. attenuation | |
| Frequence | (dB/100 m @20º |
| 50 MHz | 8,5 |
| 100 MHz | 11,3 |
| 400 MHz | 22,9 |
| 600 MHz | 28,7 |
| 860 MHz | 34,5 |
| 1000 MHz | 37,5 |
| 1750 MHz | 52,2 |
| 2400 MHz | 64 |
| - | - |
| - | - |
